3200W Liquid Cold Plate Thermal Solution

Views: 139     Author: Site Editor     Publish Time: 2024-10-28      Origin: Site

To address the growing demand for high-power cooling solutions, Winshare Thermal has developed a 3200W Liquid Cold Plate Thermal Solution. Traditional air-cooled heat sinks often fall short in meeting the stringent requirements of our customers, making liquid cold plates an excellent alternative.

Design Requirements

  • Total Thermal Power: 3200W

  • Liquid Flow Rate: 0.3 cubic meters per hour

  • Maximum Surface Temperature: Less than 60°C

  • Inlet Water Temperature: 25°C

  • Ambient Temperature: 25°C

Key Features of the Liquid Cold Plate

  • Material: Constructed from high-quality aluminum for lightweight and efficient heat transfer.

  • Cooling Tubes: Integrated copper tubes enhance thermal conductivity.

  • Sealing: Gaps are filled with epoxy to ensure durability and prevent leaks.

The liquid cold plate design effectively manages high thermal loads while maintaining optimal operating temperatures, making it suitable for a wide range of applications.


Design Process

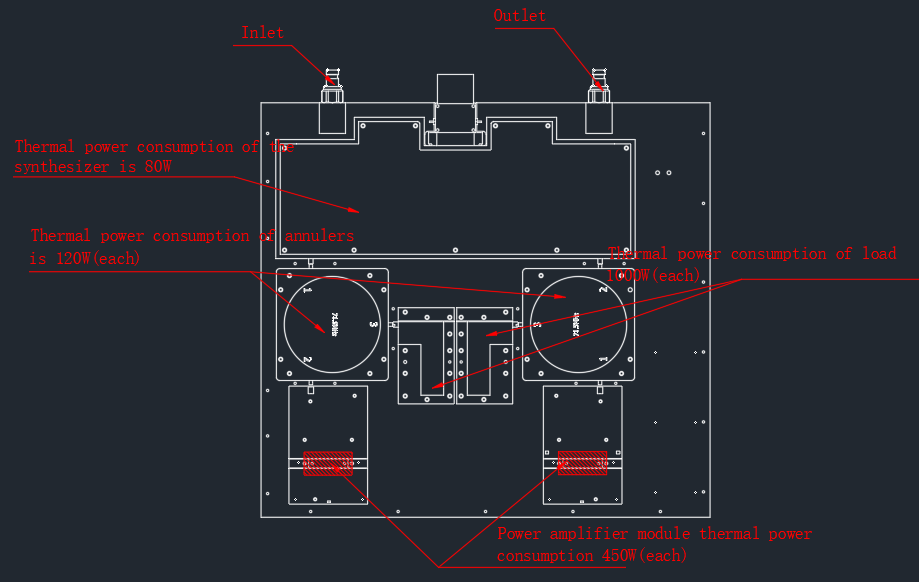

Designing drawing:

Designing drawing

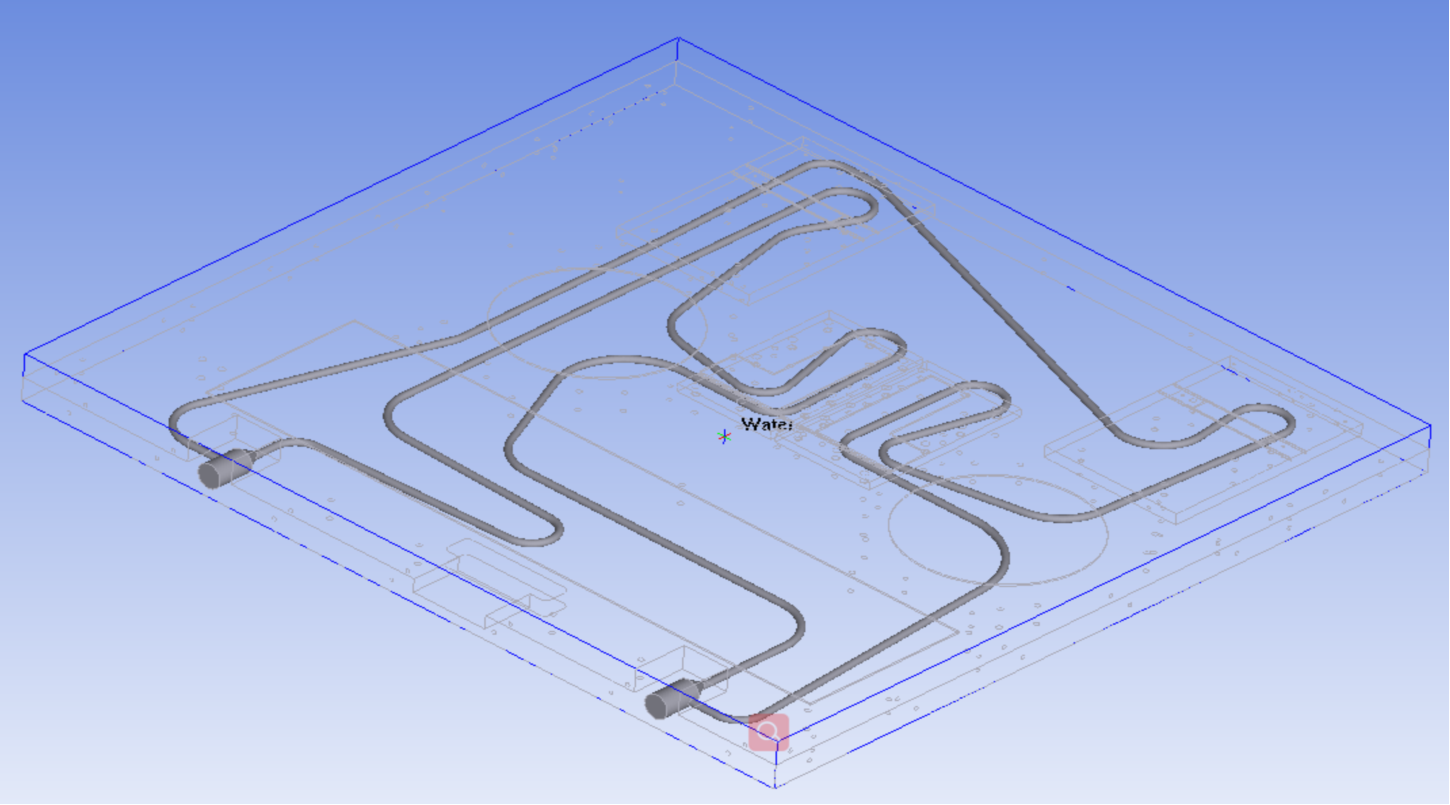

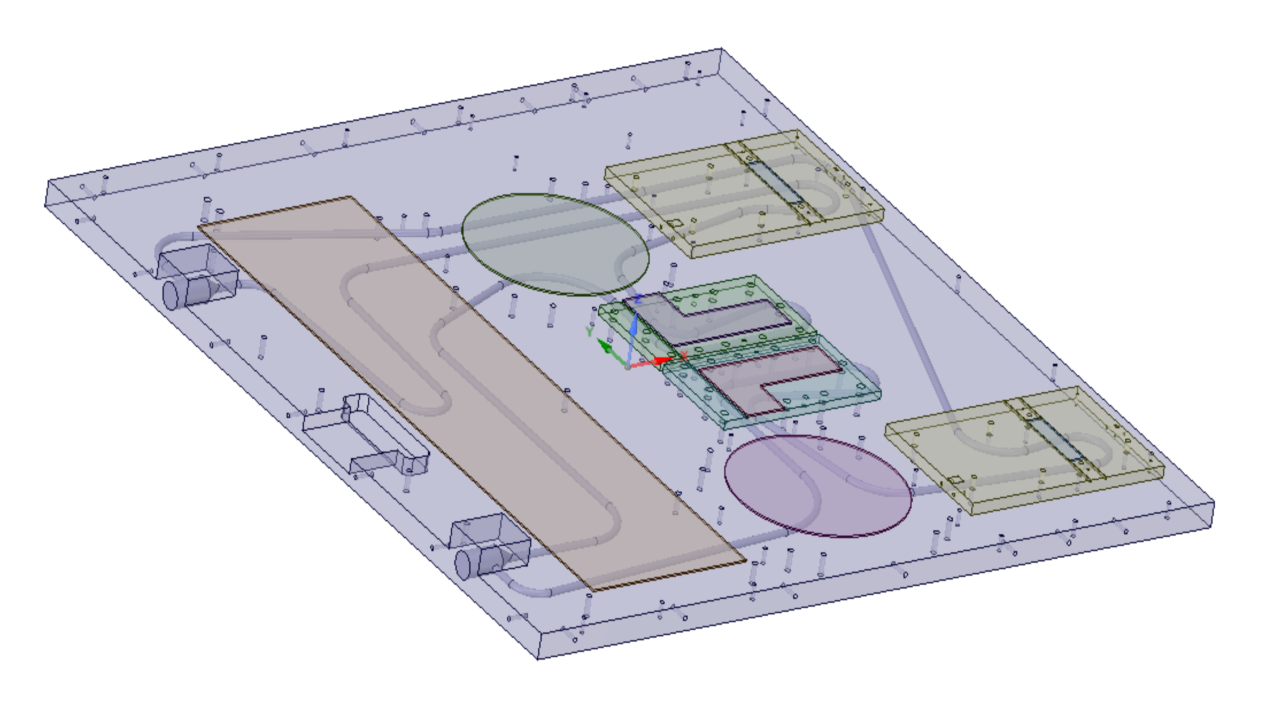

The flow model is extracted from in the Ansys16.0 SCDM software:

The flow model is extracted from in the Ansys16.0 SCDM software



Simplified model and heat source in the Ansys software

Simplified model and heat source in the Ansys software

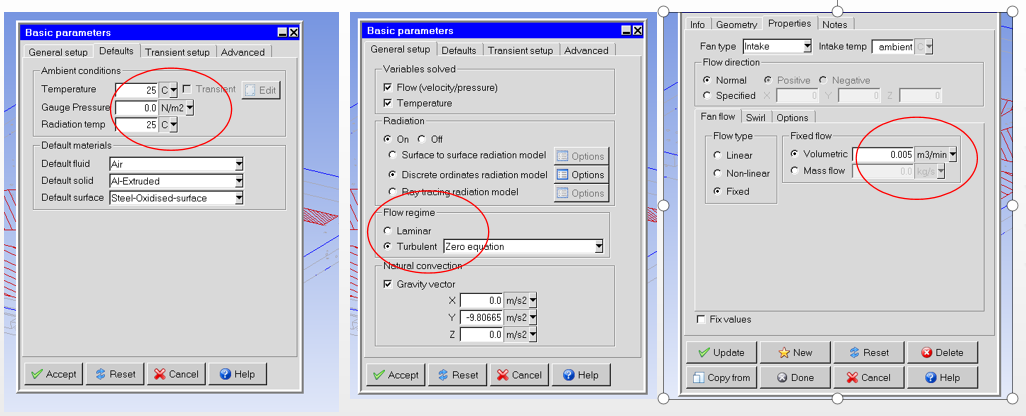

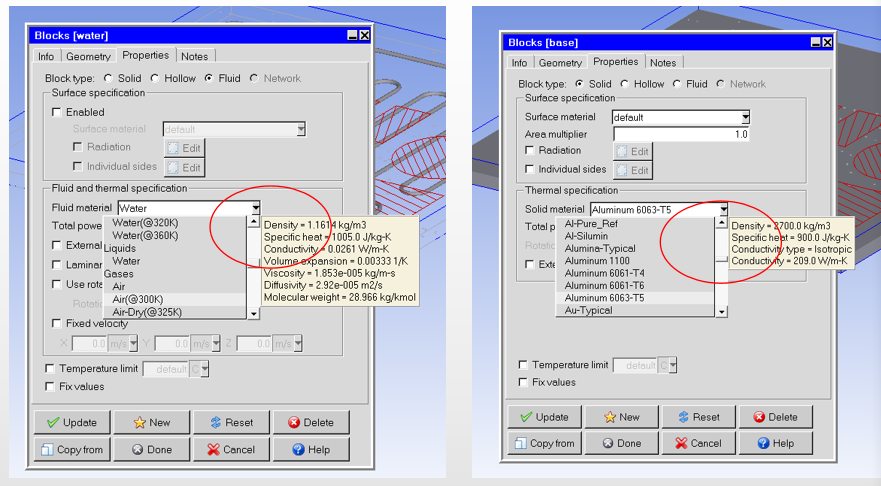

Parameter Settings 1

Parameter Settings 1


Parameter Settings 2

Parameter Settings 2

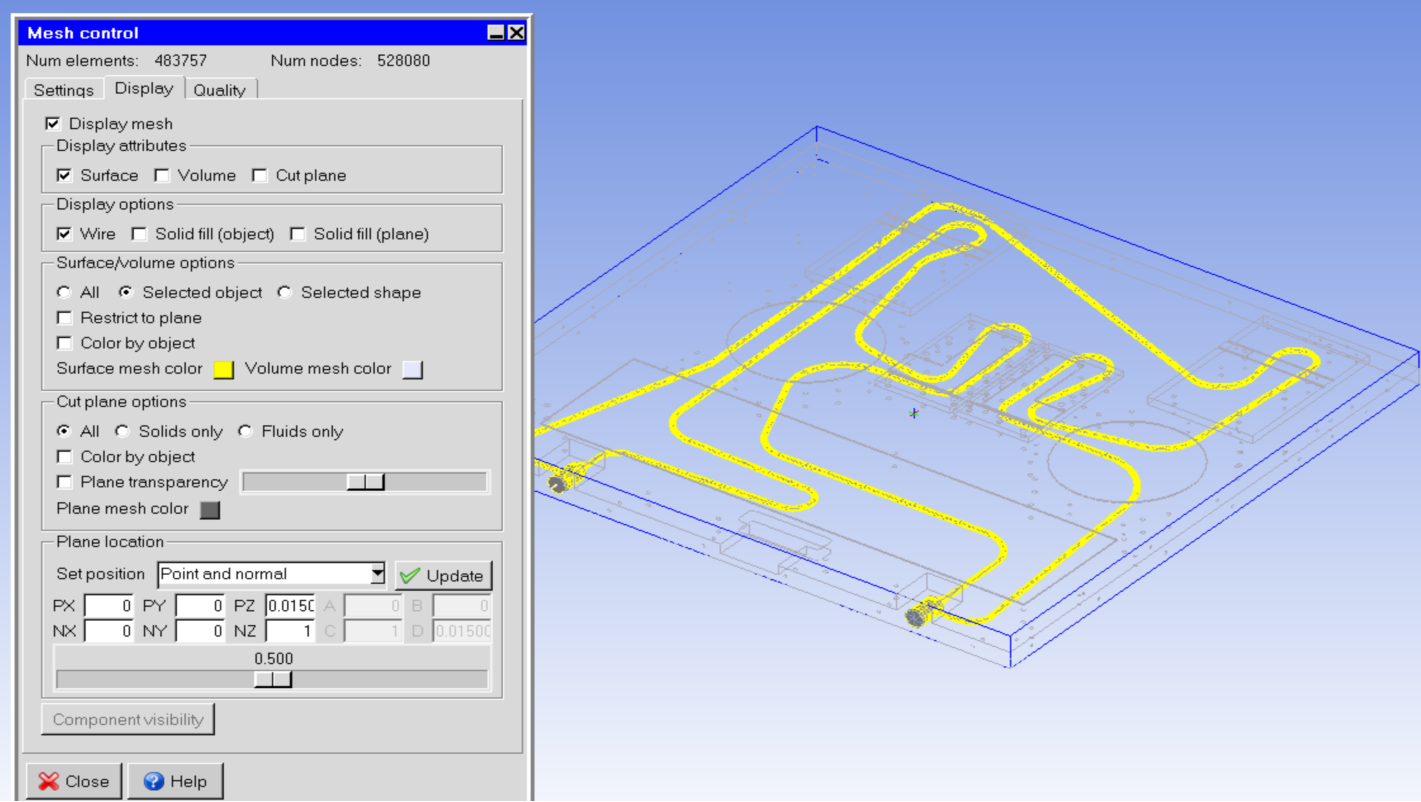

Liquid Model Meshing

Liquid Model Meshing

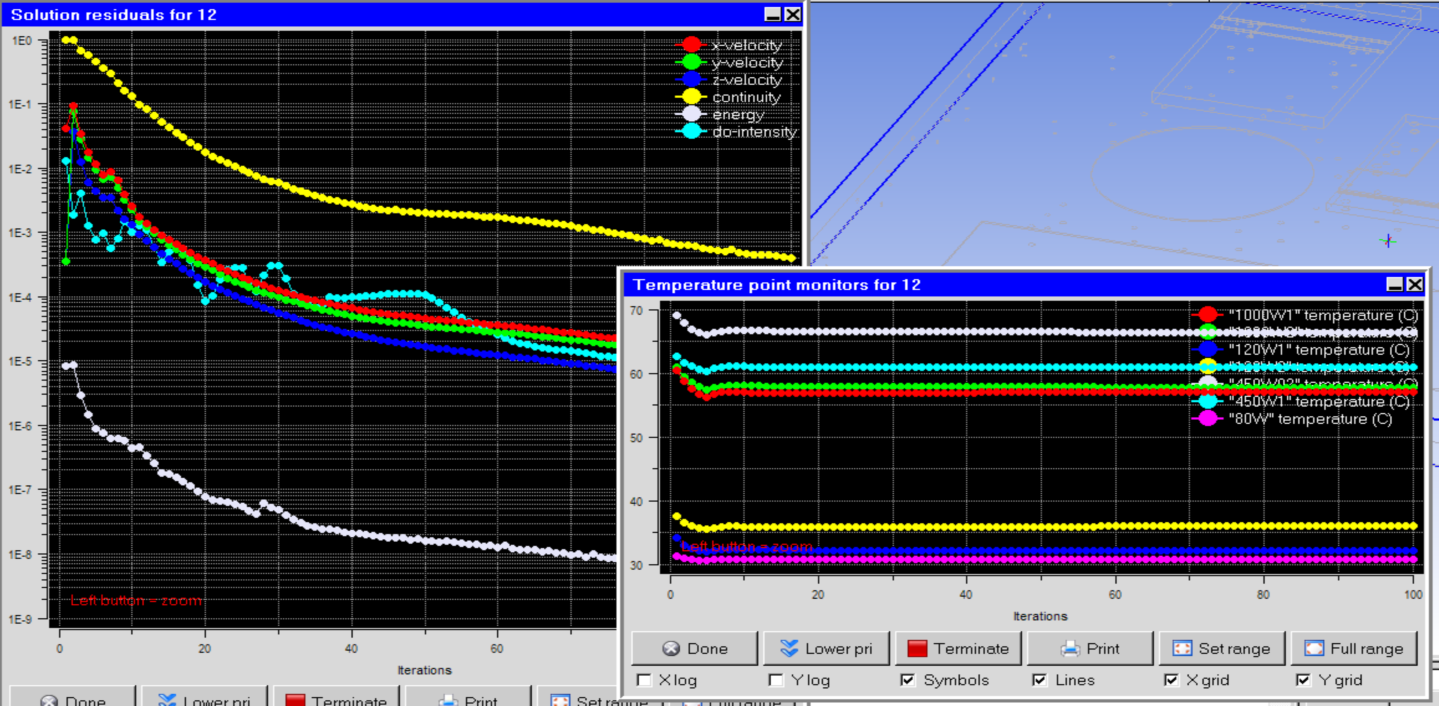

Running and convergent functions

Running and convergent functions

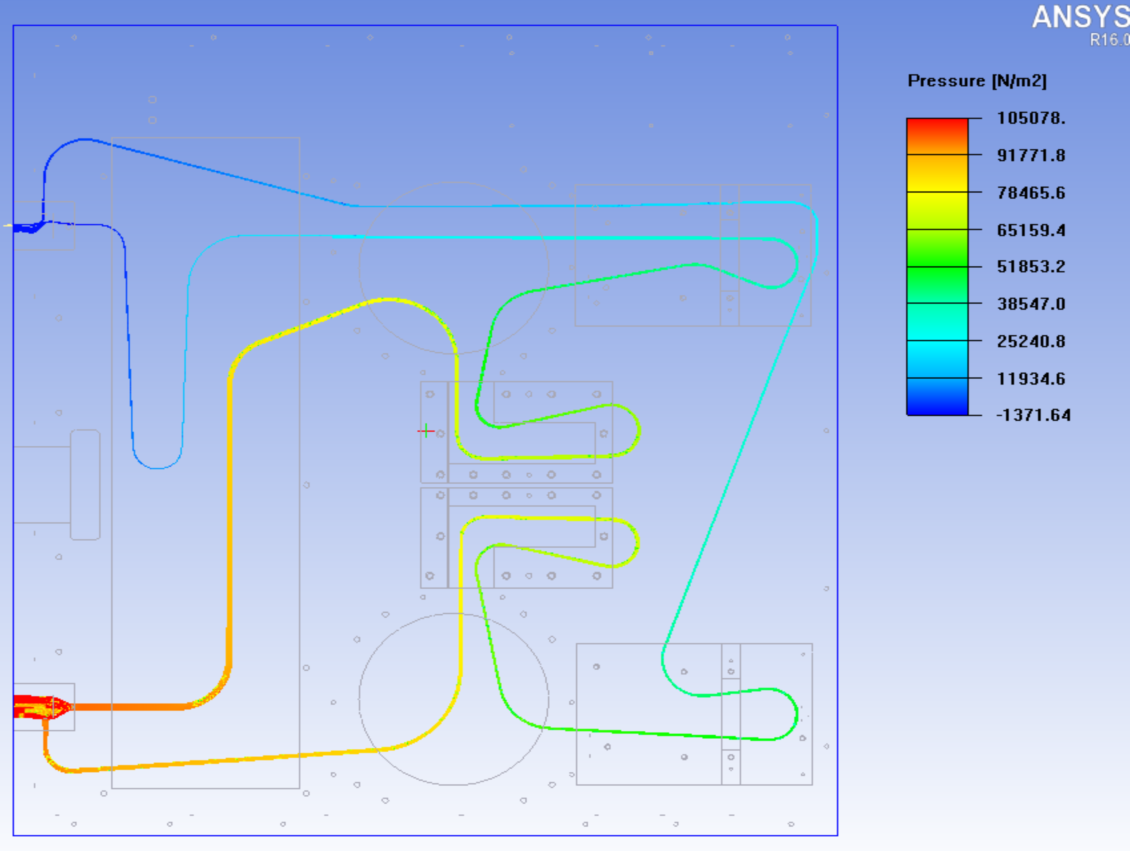

Pressure  nephogram distribution

Pressure nephogram distribution

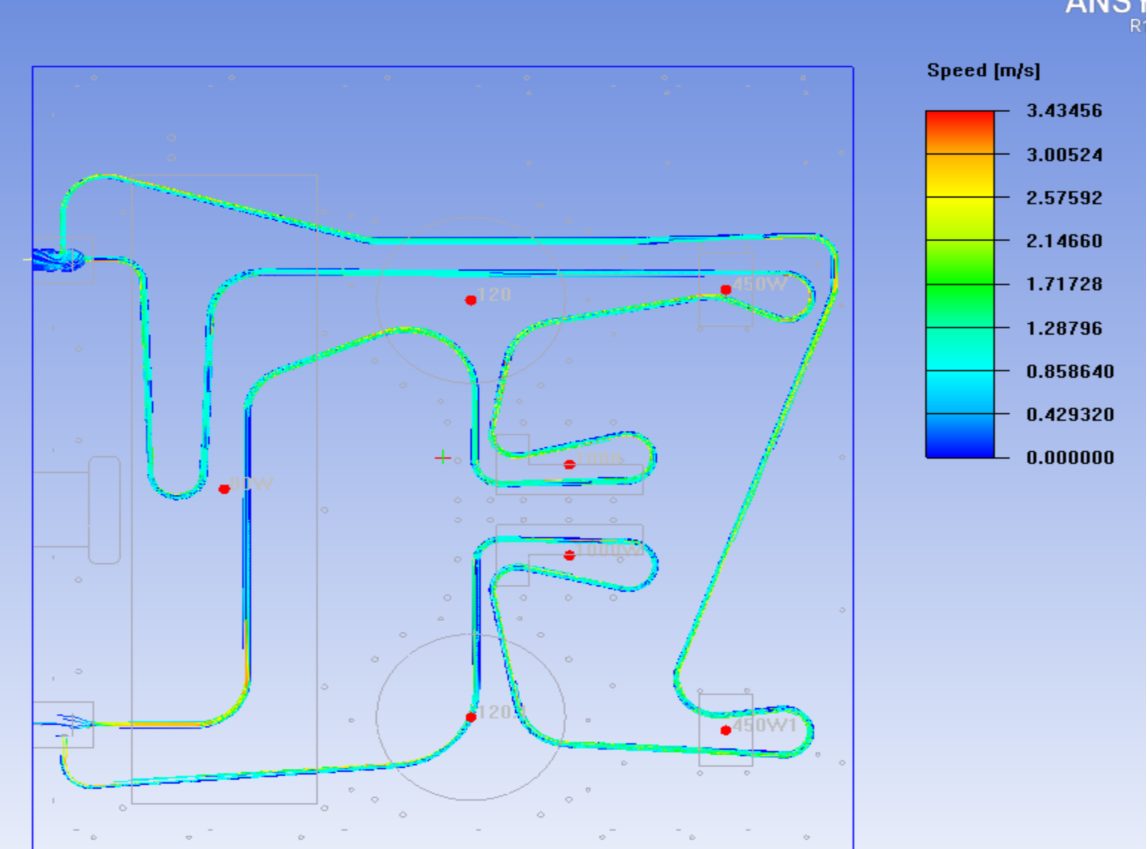

Speed nephogram distribution

Speed nephogram distribution

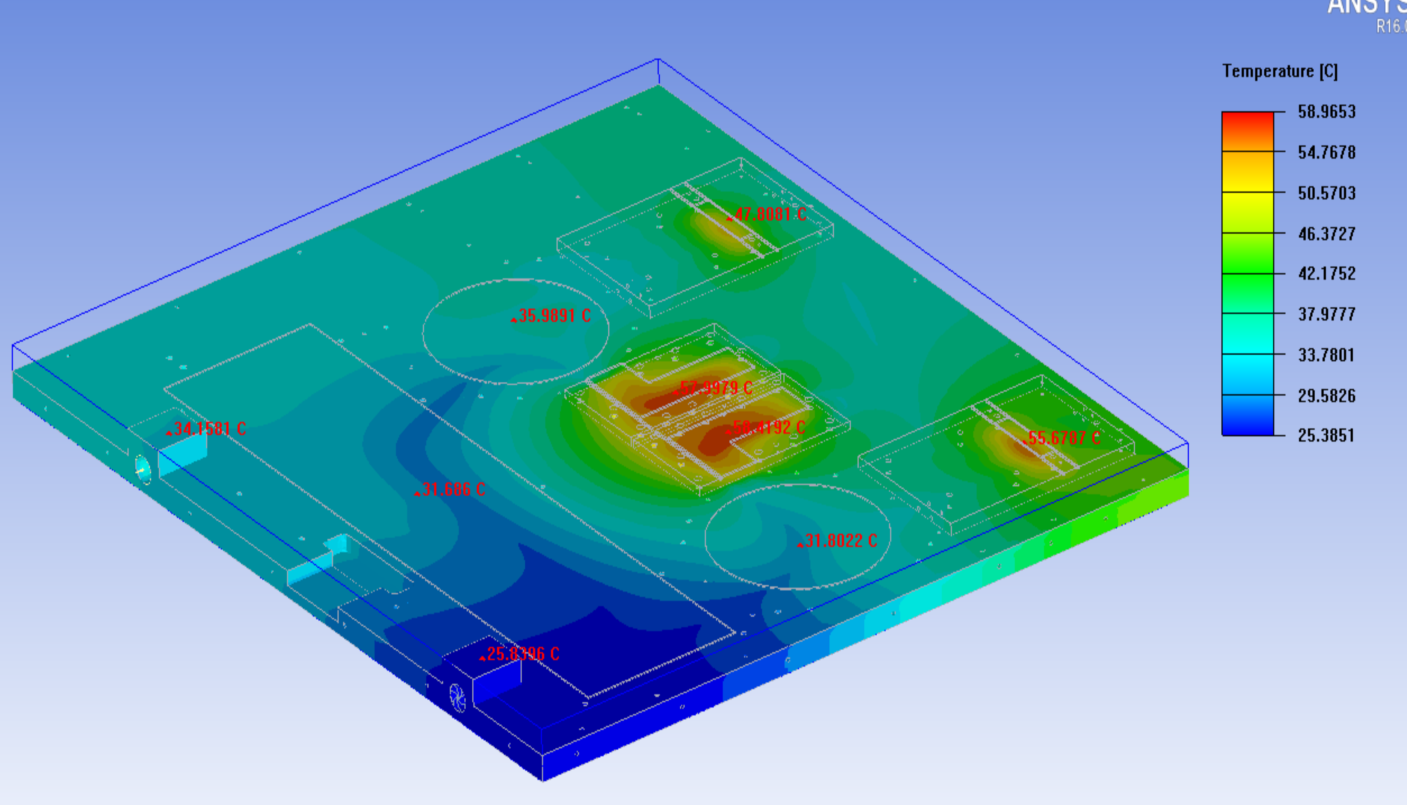

Overall temperature distribution diagram of the module

Overall temperature distribution diagram of the module


The results:

There will be a slight difference between the simplified module and the actual sample.

The maximum surface temperature of the liquid cod plate is 58.96 ℃, which is able to meet the customer's requirement of  60℃.

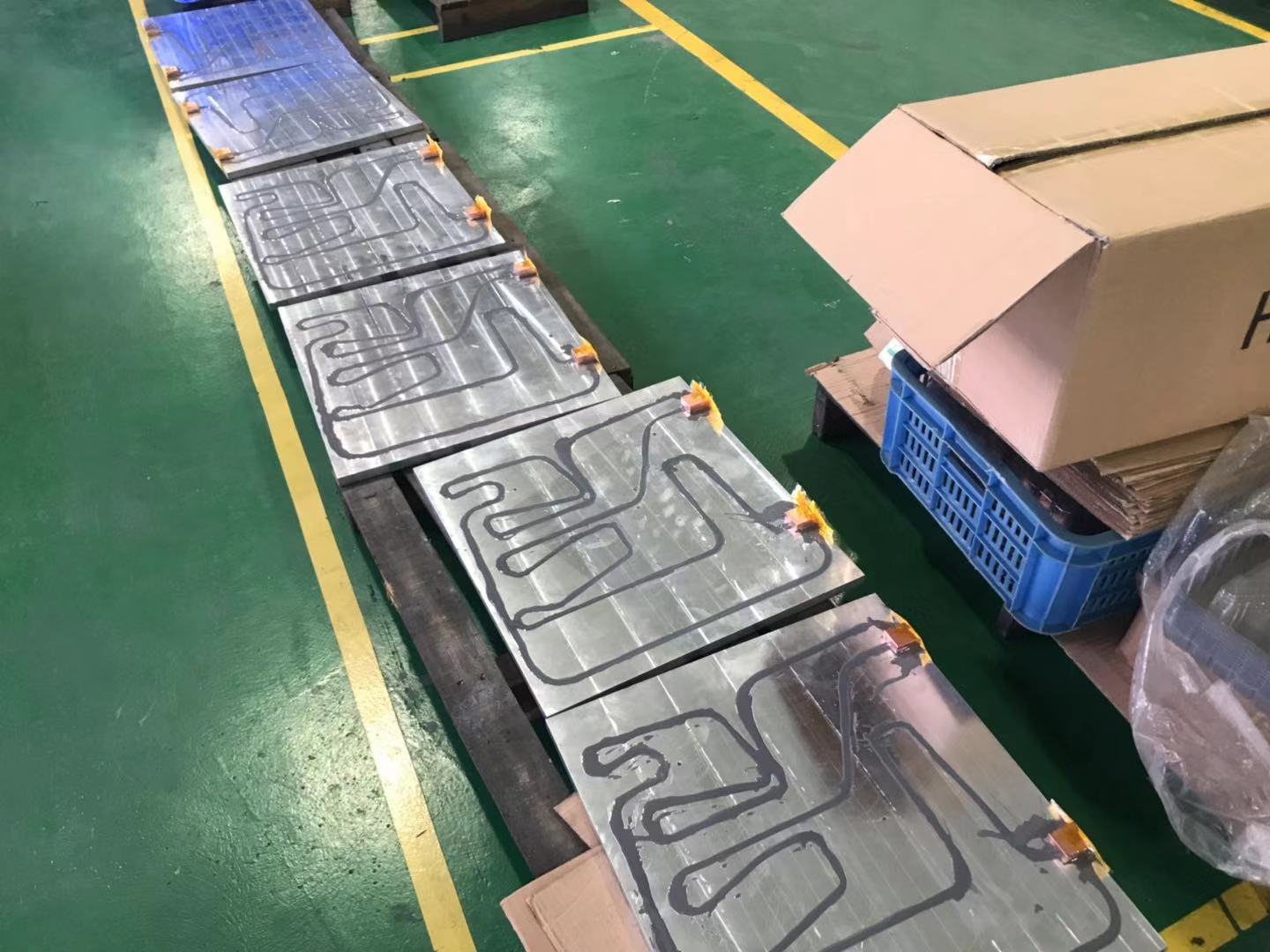

Making the sample

Making the sample
