What Are Water Cooling Plates?

What Are Water Cooling Plates?

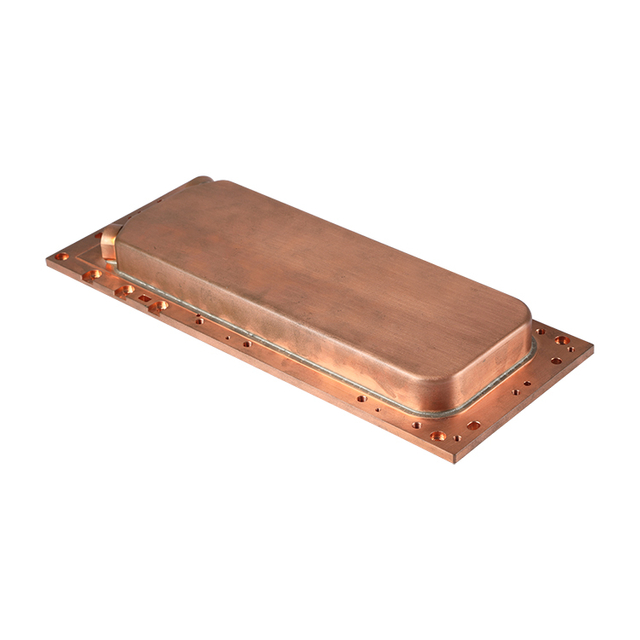

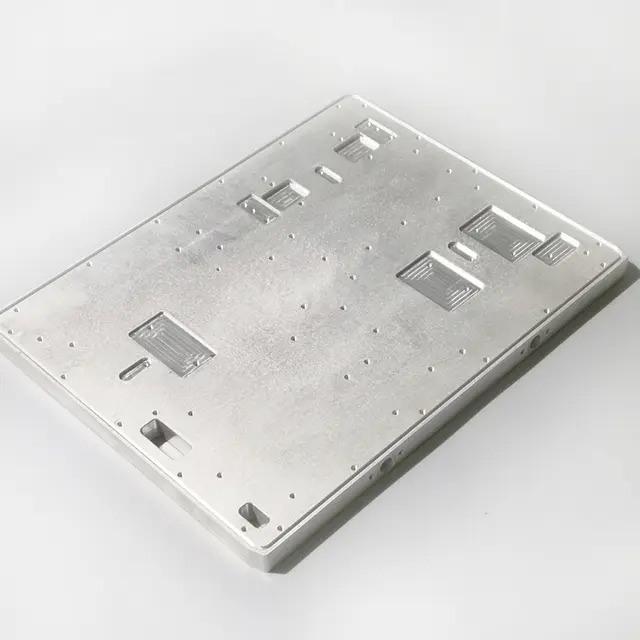

Water cooling plates are an essential component of modern thermal management systems, designed to dissipate heat from high-power electronics and systems effectively. These cooling plates typically consist of a metal base (such as copper or aluminum) with channels or passages through which coolant (often water) flows. As the coolant passes through these channels, it absorbs heat from surrounding electronic components, efficiently carrying it away.

Unlike traditional air cooling solutions, which rely on convection and ambient air circulation, water cooling plates leverage water's high thermal conductivity to provide superior heat dissipation. This makes them ideal for use in high-performance systems where effective thermal management is crucial for preventing overheating and ensuring reliability.

Water cooling plates are widely used in industries like power electronics, electric vehicles (EVs), renewable energy systems, and telecommunications, where maintaining optimal operating temperatures is critical for performance and longevity.

Why Choose Water Cooling Plates for Thermal Management?

Water cooling plates offer several advantages over traditional cooling methods such as air cooling and heat pipes. Below are some of the key benefits:

1. Higher Heat Dissipation Efficiency

Water has a significantly higher thermal capacity than air, making it much more efficient at absorbing and transferring heat. As a result, water-cooling plates can handle heat from high-power components more effectively than air-cooled solutions, especially in environments where space is limited.

2. Compact and Lightweight Design

Water cooling plates are typically more compact and lightweight than traditional air cooling systems. Not only do they require less space, but they also provide stronger cooling capabilities within a smaller form factor. This makes them particularly suitable for applications in electric vehicles, aerospace, and other high-performance equipment where space is a premium.

3. Customizable Solutions

Another key advantage of water cooling plates is their high degree of customization. Whether you require higher heat conduction efficiency or need a specific shape or size to fit your system, water cooling plates can be tailored to meet industry-specific demands. This customization is especially important in fields like electric vehicles and renewable energy, where the cooling system needs to be optimized for the specific thermal needs of the application.

4. Longer Lifespan and Low Maintenance

Water cooling plates help prevent overheating, which in turn extends the lifespan of equipment. Additionally, their durable design ensures long-term operation with minimal maintenance. In contrast, air-cooled systems can be more prone to external factors like temperature fluctuations, dust, and dirt, which can reduce their efficiency and increase maintenance needs.

How Do Water Cooling Plates Improve Thermal Performance?

Water cooling plates are highly effective at managing heat in sensitive, high-power systems. Here's how they enhance thermal performance:

1. Superior Heat Transfer Efficiency

Water's high thermal conductivity allows for efficient heat transfer from components to the cooling plate, preventing heat buildup and maintaining optimal operating temperatures. This results in improved system efficiency and reduced risks of thermal failure.

2. Even Heat Distribution

Water cooling plates ensure that heat is evenly distributed across the surface. This prevents the formation of hot spots that could lead to overheating or damage to sensitive components. The uniform cooling provided by water flow is particularly crucial in high-performance applications such as power inverters and EV batteries.

3. Effective Cooling for High-Power Applications

As demand for higher power in electronics continues to grow, water cooling plates are becoming an essential component for systems requiring efficient thermal management, including power electronics and renewable energy solutions.

What Are the Key Advantages of Water Cooling Plates?

1. High Thermal Conductivity and Heat Distribution

Water cooling plates offer excellent thermal conductivity, ensuring heat is absorbed and distributed efficiently. This helps maintain consistent temperatures and prevents overheating of critical electronic components.

2. Compact and Efficient Design

With their compact design, water cooling plates take up less space compared to traditional air-cooled heat sinks. This makes them ideal for applications where space is limited, such as electric vehicles and data centers.

3. Customizable Solutions for Different Industries

Water cooling plates can be tailored to suit the specific needs of different industries. Whether you require a high-performance cooling solution for power electronics or a scalable design for telecommunications equipment, water cooling plates can be customized for optimal performance.

4. Compatibility with High-Power Electronics

Water cooling plates are particularly useful in high-power applications where efficient heat dissipation is critical. Their ability to handle large amounts of heat makes them a top choice for cooling power inverters, electric vehicle batteries, and renewable energy systems.

5. Long-Term Durability and Low Maintenance

With proper maintenance, water cooling plates are designed to last long and require minimal upkeep. This reduces downtime and maintenance costs. Their robust construction ensures reliable operation over extended periods.

What Are the Applications of Water Cooling Plates?

Water cooling plates are highly versatile and can be used in various high-performance industries. Some key applications include:

1. Power Electronics and Inverters

Water cooling plates are widely used to cool power electronics, such as inverters, which are crucial components in renewable energy systems. They provide efficient cooling to ensure that these systems remain operational under heavy loads.

2. Electric Vehicle (EV) Batteries

Electric vehicle batteries generate significant amounts of heat during charging and discharging. Water cooling plates are ideal for maintaining optimal temperatures in EV batteries, improving performance, and extending battery life.

3. Renewable Energy Systems

Water cooling plates play a crucial role in renewable energy systems like solar inverters and wind power converters. These systems require efficient cooling solutions to ensure they operate at peak performance while avoiding overheating.

4. Data Centers and Telecommunications

In data centers, where large-scale computing systems generate substantial heat, water cooling plates offer a compact and efficient solution to maintain stable operating temperatures. Similarly, they are used in telecommunications to cool servers and networking equipment.

5. Aerospace and Military

In aerospace and military applications, where reliability and performance are paramount, water cooling plates provide efficient and reliable thermal management for high-power electronics used in critical applications.

How to Select the Right Water Cooling Plate for Your Needs?

When choosing a water cooling plate, consider the following factors:

1. Material Selection: Common materials include copper and aluminum, with copper offering better thermal conductivity and aluminum being lighter and more cost-effective.

2. Design and Flow Rate: Choose a design that meets your specific heat dissipation requirements. For high-power systems, more intricate cooling plate designs with optimized coolant flow may be needed.

3. Customization: Ensure the water cooling plate design aligns with the unique needs of your application, particularly in power electronics or renewable energy systems.

Future of Water Cooling Plates and Innovations in Thermal Management

As technology continues to evolve, water cooling plates are becoming even more efficient and adaptable. Future trends include:

1. Advanced Materials: New materials with enhanced thermal conductivity are being developed to improve heat transfer efficiency.

2. Sustainable Cooling Solutions: Innovations in eco-friendly coolants and materials are making water cooling plates a more sustainable option for thermal management.

3. AI-Driven Thermal Management: Future water cooling systems may integrate AI to dynamically adjust cooling strategies based on real-time system conditions, further optimizing thermal performance.

Conclusion: Why Partner with Winshare Thermal for Water Cooling Plate Solutions?

Water cooling plates are an effective and efficient solution for managing heat in high-performance systems. Their superior heat dissipation, compact design, and reliability make them ideal for industries such as power electronics, electric vehicles, and renewable energy systems.

At Winshare Thermal, we specialize in designing and manufacturing high-quality, customized water cooling plates tailored to meet your specific thermal management needs. With years of experience and a commitment to innovation, we provide solutions that ensure optimal performance and reliability for your applications.

Contact Winshare Thermal today to learn more about our water cooling plate solutions and how we can help optimize your system's thermal management.
